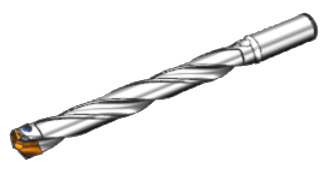

| D1 | 產品型號 | 尺寸MM | |||
| LU | L | LS | D | ||
| 12.00-12.49 | SPTC120R8A16 | 102 | 157 | 49 | 16 |
| 12.50-12.99 | SPTC125R8A16 | 102 | 157 | 49 | 16 |
| 13.00-13.49 | SPTC130R8A16 | 111 | 166 | 49 | 16 |
| 13.50-13.99 | SPTC135R8A16 | 111 | 166 | 49 | 16 |
| 14.00-14.49 | SPTC140R8A16 | 120 | 175 | 49 | 16 |
| 14.50-14.99 | SPTC145R8A16 | 120 | 175 | 49 | 16 |
| 15.00-15.49 | SPTC150R8A16 | 129 | 184 | 49 | 16 |
| 15.50-15.99 | SPTC155R8A16 | 129 | 184 | 49 | 16 |
| 16.00-16.49 | SPTC160R8A20 | 145 | 210 | 50 | 20 |
| 16.50-16.99 | SPTC165R8A20 | 145 | 210 | 50 | 20 |
| 17.00-17.49 | SPTC170R8A20 | 145 | 215 | 50 | 20 |
| 17.50-17.99 | SPTC175R8A20 | 145 | 215 | 50 | 20 |
| 18.00-18.49 | SPTC180R8A20 | 168 | 241 | 56 | 20 |
| 18.50-18.99 | SPTC185R8A20 | 168 | 241 | 56 | 20 |
| 19.00-19.49 | SPTC190R8A20 | 175 | 249 | 56 | 20 |
| 19.50-19.99 | SPTC195R8A20 | 175 | 249 | 56 | 20 |
|
|
|
||||
| D1 | 產品型號 | 尺寸MM | |||
| LU | L | LS | D | ||
| 20.00-20.99 | SPTC200R8B25 | 181 | 254 | 56 | 25 |
| 21.00-21.99 | SPTC210R8B25 | 181 | 262 | 56 | 25 |
| 22.00-22.99 | SPTC220R8B25 | 198 | 270 | 56 | 25 |
| 23.00-23.99 | SPTC230R8B25 | 198 | 278 | 56 | 25 |
| 24.00-24.99 | SPTC240R8B32 | 232 | 312 | 60 | 32 |
| 25.00-25.99 | SPTC250R8B32 | 232 | 312 | 60 | 32 |
| 26.00-26.99 | SPTC260R8B32 | 249 | 317 | 60 | 32 |
| 27.00-27.99 | SPTC270R8B32 | 249 | 327 | 60 | 32 |
| 28.00-28.99 | SPTC280R8B32 | 267 | 335 | 60 | 32 |
| 29.00-29.99 | SPTC290R8B32 | 267 | 343 | 60 | 32 |
| 30.00-31.99 | SPTC300R8B40 | 282 | 361 | 70 | 40 |
| 32.00-33.99 | SPTC320R8B40 | 284 | 377 | 70 | 40 |
| 34.00-35.99 | SPTC340R8B40 | 284 | 393 | 70 | 40 |
| 36.00-37.99 | SPTC360R8B40 | 344 | 417 | 70 | 40 |
| 38.00-39.99 | SPTC380R8B40 | 344 | 434 | 70 | 40 |
| 40.00-41.99 | SPTC400R8B40 | 364 | 449 | 70 | 40 |
| 42.00-43.99 | SPTC420R8B40 | 364 | 479 | 70 | 40 |
| 44.00-45.99 | SPTC440R8B40 | 368 | 495 | 70 | 40 |
| 46.00-47.99 | SPTC460R8B40 | 408 | 511 | 70 | 40 |
| 46.00-47.99 | SPTC480R8B40 | 408 | 527 | 70 | 40 |
| 50.00-52.00 | SPTC500R8B40 | 430 | 543 | 70 | 40 |
| 附件 | |||||||
| 螺釘 | 扳手 | ||||||
|
|
||||||
| 序號 | 尺寸 | 3倍徑刀桿型號 | 5倍徑刀桿型號 | 8倍徑刀桿型號 | 螺釘 | 扳手 | |
| 1 | 12.0 | SPTC120R3A16 | SPTC120R5A16 | SPTC120R8A16 | 120M2.5 | LS1.5 | |
| 2 | 12.5 | SPTC125R3A16 | SPTC125R5A16 | SPTC125R8A16 | 120M2.5 | LS1.5 | |
| 3 | 13.0 | SPTC130R3A16 | SPTC130R5A16 | SPTC130R8A16 | 130M2.5 | LS1.5 | |
| 4 | 13.5 | SPTC135R3A16 | SPTC135R5A16 | SPTC135R8A16 | 130M2.5 | LS1.5 | |
| 5 | 14.0 | SPTC140R3A16 | SPTC140R5A16 | SPTC140R8A16 | 140M2.5 | LS1.5 | |
| 6 | 14.5 | SPTC145R3A16 | SPTC145R5A16 | SPTC145R8A16 | 140M2.5 | LS1.5 | |
| 7 | 15.0 | SPTC150R3A16 | SPTC150R5A16 | SPTC150R8A16 | 150M2.5 | LS1.5 | |
| 8 | 15.5 | SPTC155R3A16 | SPTC155R5A16 | SPTC155R8A16 | 150M2.5 | LS1.5 | |
| 9 | 16.0 | SPTC160R3A20 | SPTC160R5A20 | SPTC160R8A20 | 160M3.0 | LS2.0 | |
| 10 | 16.5 | SPTC165R3A20 | SPTC165R5A20 | SPTC165R8A20 | 160M3.0 | LS2.0 | |
| 11 | 17.0 | SPTC170R3A20 | SPTC170R5A20 | SPTC170R8A20 | 170M3.0 | LS2.0 | |
| 12 | 17.5 | SPTC175R3A20 | SPTC175R5A20 | SPTC175R8A20 | 170M3.0 | LS2.0 | |
| 13 | 18.0 | SPTC180R3A20 | SPTC180R5A20 | SPTC180R8A20 | 180M3.0 | LS2.0 | |
| 14 | 18.5 | SPTC185R3A20 | SPTC185R5A20 | SPTC185R8A20 | 180M3.0 | LS2.0 | |
| 15 | 19.0 | SPTC190R3A20 | SPTC190R5A20 | SPTC190R8A20 | 190M3.0 | LS2.0 | |
| 16 | 19.5 | SPTC195R3A20 | SPTC195R5A20 | SPTC195R8A20 | 190M3.0 | LS2.0 | |
| 17 | 20.0 | SPTC200R3B25 | SPTC200R5B25 | SPTC200R8B25 | 210M4.0 | LS2.5 | |
| 18 | 21.0 | SPTC210R3B25 | SPTC210R5B25 | SPTC210R8B25 | 210M4.0 | LS2.5 | |
| 19 | 22.0 | SPTC220R3B25 | SPTC220R5B25 | SPTC220R8B25 | 230M4.0 | LS2.5 | |
| 20 | 23.0 | SPTC230R3B25 | SPTC230R5B25 | SPTC230R8B25 | 230M4.0 | LS2.5 | |
| 21 | 24.0 | SPTC240R3B25 | SPTC240R5B25 | SPTC240R8B25 | 250M4.0 | LS2.5 | |
| 22 | 25.0 | SPTC250R3B32 | SPTC250R5B32 | SPTC250R8B32 | 250M4.0 | LS2.5 | |
| 23 | 26.0 | SPTC260R3B32 | SPTC260R5B32 | SPTC260R8B32 | 270M5.0 | LS3.0 | |
| 24 | 27.0 | SPTC270R3B32 | SPTC270R5B32 | SPTC270R8B32 | 270M5.0 | LS3.0 | |
| 25 | 28.0 | SPTC280R3B32 | SPTC280R5B32 | SPTC280R8B32 | 290M5.0 | LS3.0 | |
| 26 | 29.0 | SPTC290R3B32 | SPTC290R5B32 | SPTC290R8B32 | 290M5.0 | LS3.0 | |
| 27 | 30.0 | SPTC300R3B40 | SPTC300R5B40 | SPTC300R8B40 | 300M5.0 | LS3.0 | |
| 28 | 32.0 | SPTC320R3B40 | SPTC320R5B40 | SPTC320R8B40 | 320M5.0 | LS3.0 | |
| 29 | 34.0 | SPTC340R3B40 | SPTC340R5B40 | SPTC340R8B40 | 340M5.0 | LS3.0 | |
| 30 | 36.0 | SPTC360R3B40 | SPTC360R5B40 | SPTC360R8B40 | 360M6.0 | LS4.0 | |
| 31 | 38.0 | SPTC380R3B40 | SPTC380R5B40 | SPTC380R8B40 | 380M6.0 | LS4.0 | |
| 32 | 40.0 | SPTC400R3B40 | SPTC400R5B40 | SPTC400R8B40 | 400M6.0 | LS4.0 | |
| 33 | 42.0 | SPTC420R3B40 | SPTC420R5B40 | SPTC420R8B40 | 420M6.0 | LS4.0 | |
| 34 | 44.0 | SPTC440R3B40 | SPTC440R5B40 | SPTC440R8B40 | 440M6.0 | LS4.0 | |
| 35 | 46.0 | SPTC460R3B40 | SPTC460R5B40 | SPTC460R8B40 | 460M6.0 | LS4.0 | |
| 36 | 48.0 | SPTC480R3B40 | SPTC480R5B40 | SPTC480R8B40 | 480M6.0 | LS4.0 | |
| 37 | 50.0 | SPTC500R3B40 | SPTC500R5B40 | SPTC500R8B40 | 500M6.0 | LS4.0 | |
展開 關閉
| 切削參數-SPTC | |||||||
| SMG | Vc=m/min | f=mm/rev | |||||
| min | Starting Value | max | 12.0 | 16.0 | 20.0 | 25.0 | |
| P1 | 100 | 110 | 150 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
| P2 | 80 | 95 | 120 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
| P3 | 65 | 70 | 100 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
| M1 | 30 | 60 | 90 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
| M2 | 30 | 50 | 90 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
| M3 | 20 | 40 | 60 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
| K1 | 100 | 175 | 200 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
| K2 | 100 | 160 | 180 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
| K3 | 70 | 85 | 100 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
| 切削參數-SPTC | ||||||
| SMG | Vc=m/min | f=mm/rev | ||||
| min | Starting Value | max | 32.0 | 40.0 | 50.0 | |
| P1 | 100 | 110 | 150 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
| P2 | 80 | 95 | 120 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
| P3 | 65 | 70 | 100 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
| M1 | 30 | 60 | 90 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
| M2 | 30 | 50 | 90 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
| M3 | 20 | 40 | 60 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
| K1 | 100 | 175 | 200 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
| K2 | 100 | 160 | 180 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
| K3 | 70 | 85 | 100 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
